available within 10-14 business days



The Portkeys LH5P II is the most affordable 5.5-inch Wide Color Gamut on-camera monitor with a stunning maximum brightness of 2,000nits and wired/wireless camera control capabilities. This HDMI-only monitor features a rugged and durable design entirely made of aluminum with a complete set of professional monitoring tools ready for your next creative adventures.

Key features:

  • 5.5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
  • Daylight-viewable with a maximum brightness of 2,000nits.
  • 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
  • Maximum input resolution: 4K DCI at 24p or 4K UHD at 30p.
  • Professional monitoring tools: Waveform, Peaking, ARRI False Color.
  • 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
  • Wireless camera control for most Sony and Blackmagic Design cameras.
  • Touchscreen autofocus (wireless) feature is available for select Sony cameras, including the FX3, a7S III, and A7C.
  • Wired camera control for Sony, Canon, Panasonic, BMD, and ZCAM E2.
  • TILTA Nucleus N/M wireless follow focus wired control.
  • Built-in Sony NP-F style battery plate.
  • 5-pin 7.4V-24V power input for external power .
  • Lightweight and rugged aluminum housing: only 285g/10.05oz.

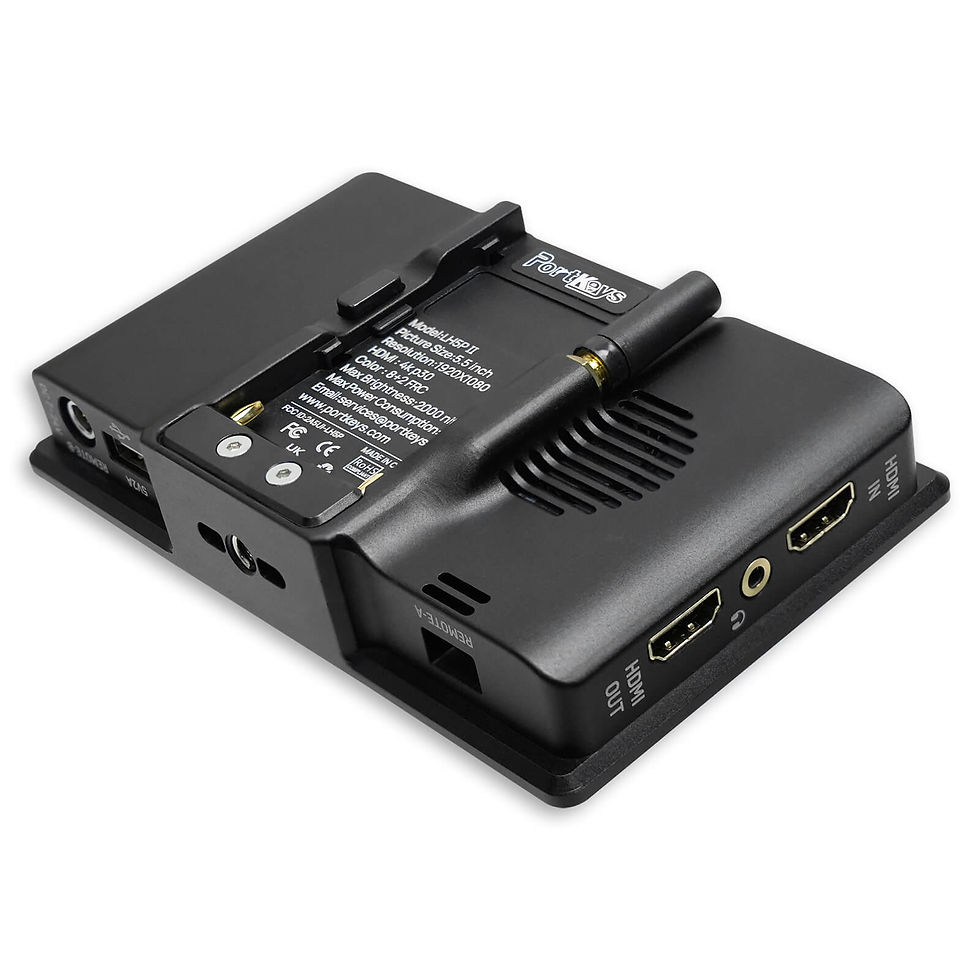

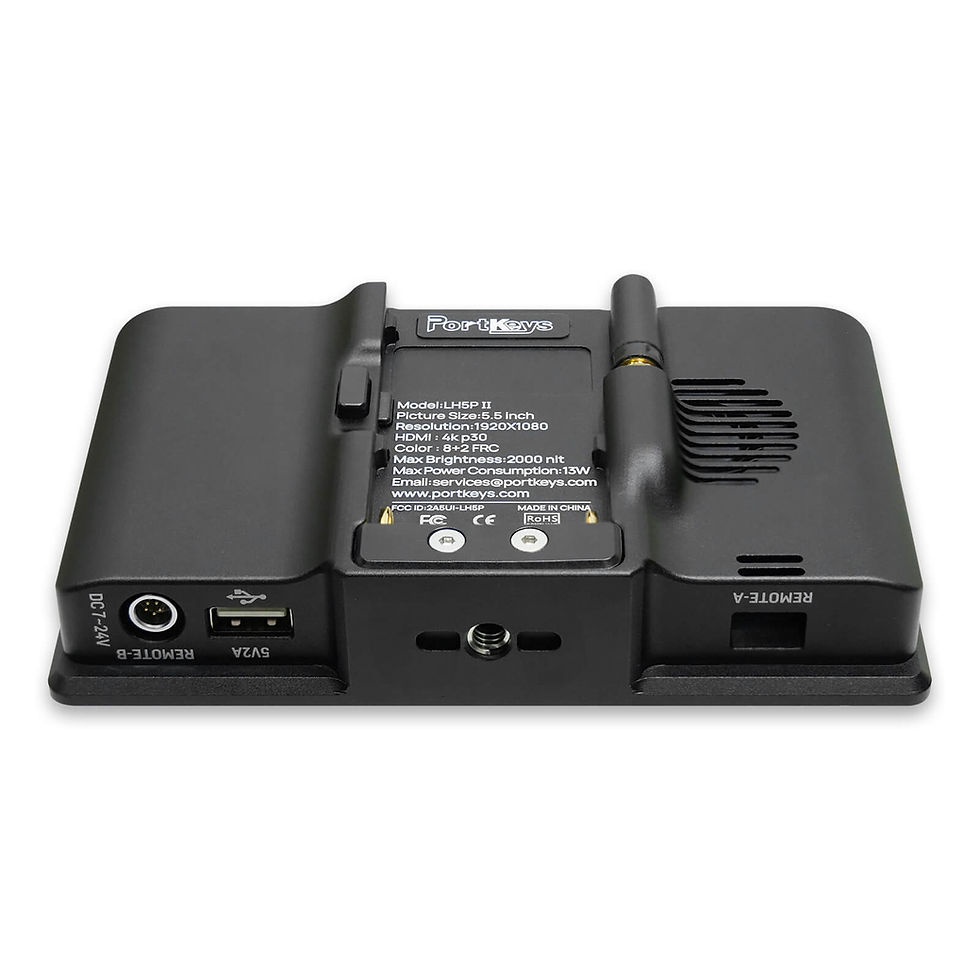

Portkeys LH5P II

€399.00Price
Excluding Sales Tax
Quantity
  • Basic Parameters
    Screen Size 5.5″
    Dimension 144*90*30.8mm
    Viewing Angle 178°H/178°V
    Brightness 2000nit
    Resolution 1920*1080
    Contrast Ratio 1000:1
    Weight 285g
    Color Depth 10bit(8+2 FRC)
    Maximum Power 13W
    Material Aluminum alloy + Toughened glass
    Input Voltage DC 7-24V
    Output Voltage 4pin Aviation Connector OUT 7.4V(NPF)
    Video Signal Input 4K HDMI
    Video Signal Output 4K HDMI
    Support Barrery Model SONY NP-F970/F960/F750/F550
    5pin Aviation Power Input Available 7-24V power supply or NPF
    5pin Aviation Power Output

    Can output 5V1A voltage to power

    other devices

    Audio Output 3.5mm Headphone Jack
    USB-A Firmware Update / 3D LUT
    Fan Yes



Gross(+VAT rate not found for this country code%): €NaN
